rPDU2MQTT

Whole-house energy monitoring, from the solar array to the outlet. Configured in a web GUI.

• Reads PDUs, MQTT, Modbus TCP, EmonCMS and Home Assistant.
• Builds one hierarchy: grid, solar, battery, inverter, panels, breakers, circuits, devices, outlets.

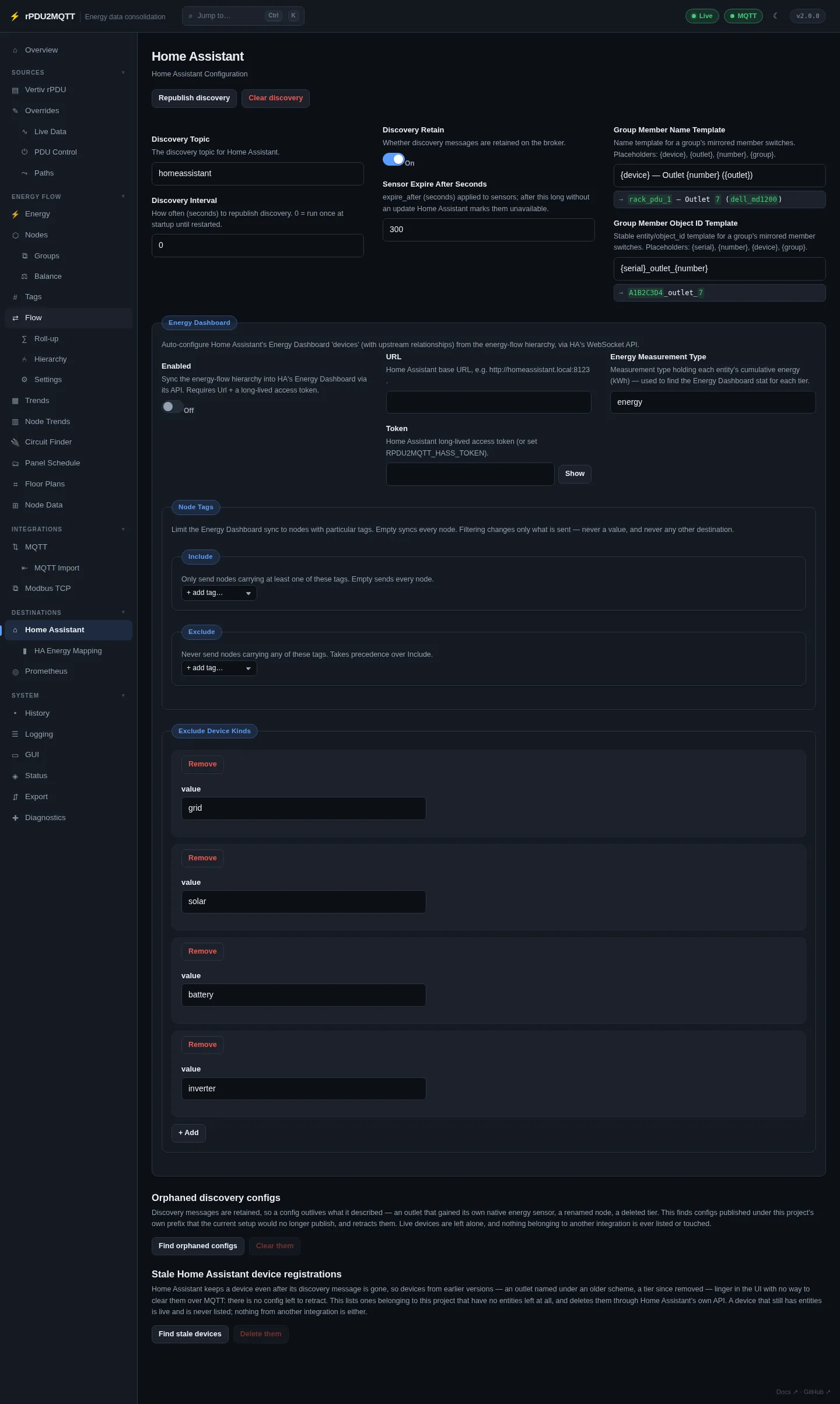

• Publishes to MQTT, Home Assistant (including the Energy Dashboard), Prometheus and EmonCMS.

Install Quick start

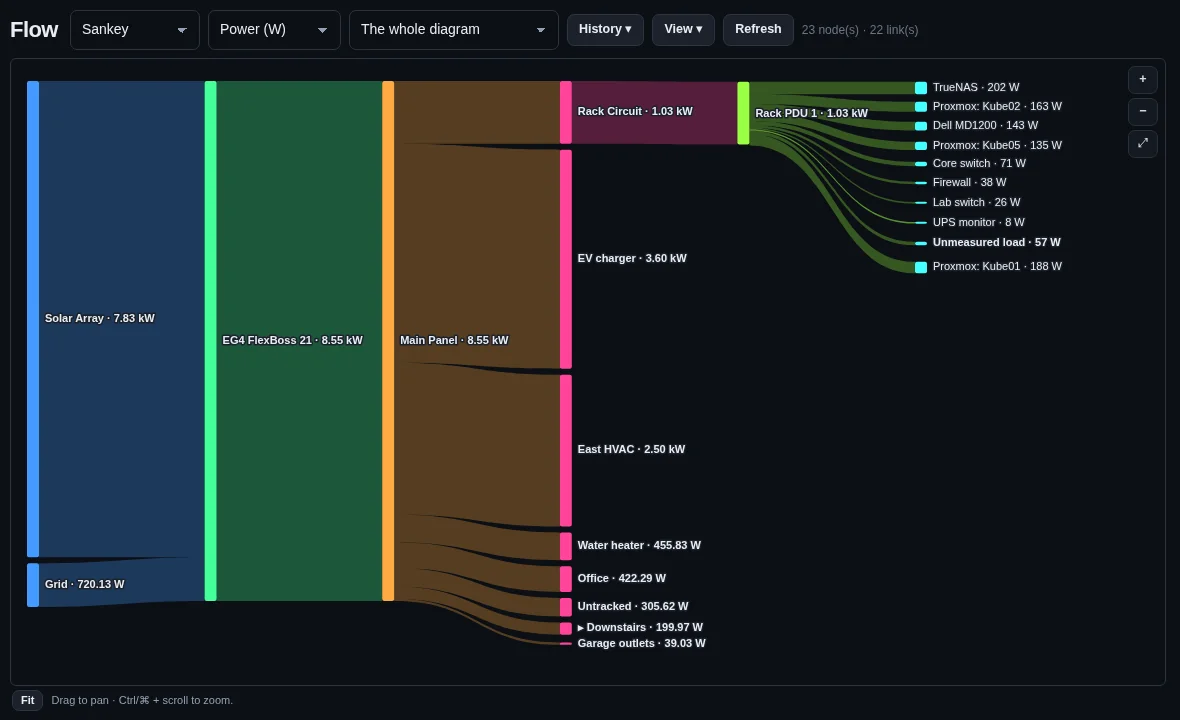

Energy flow

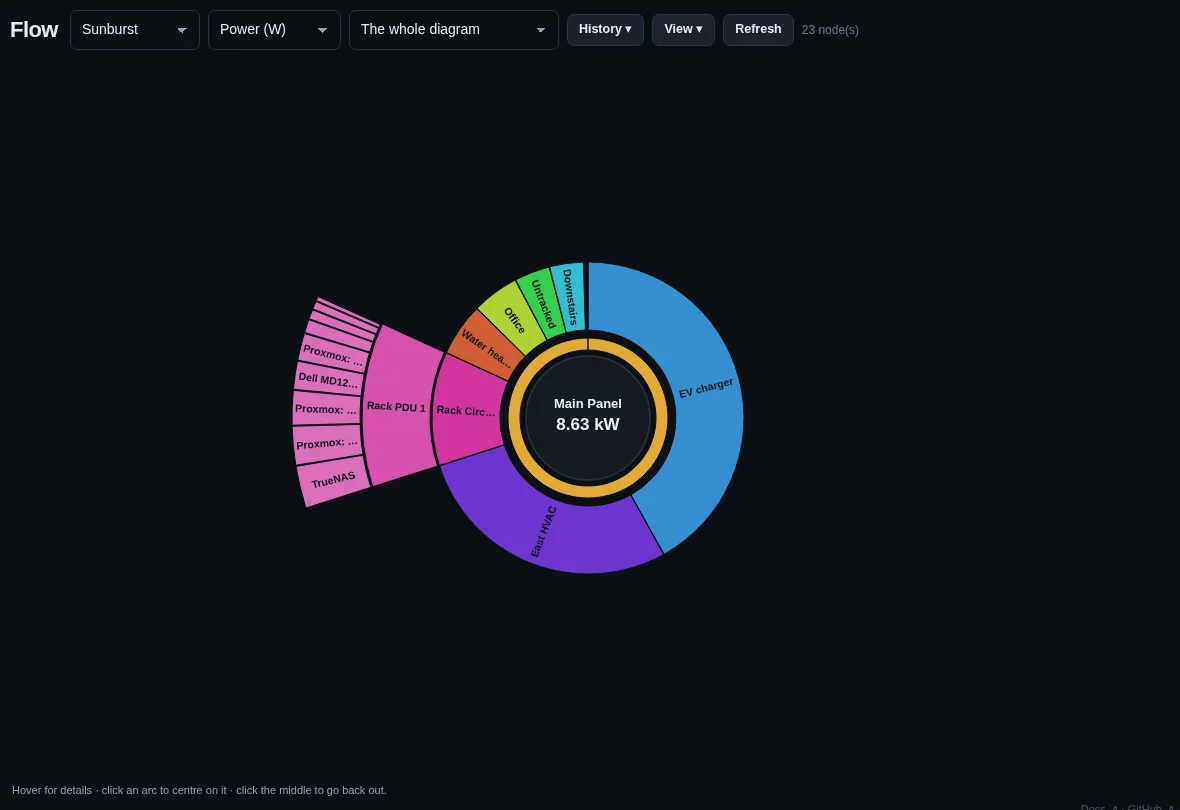

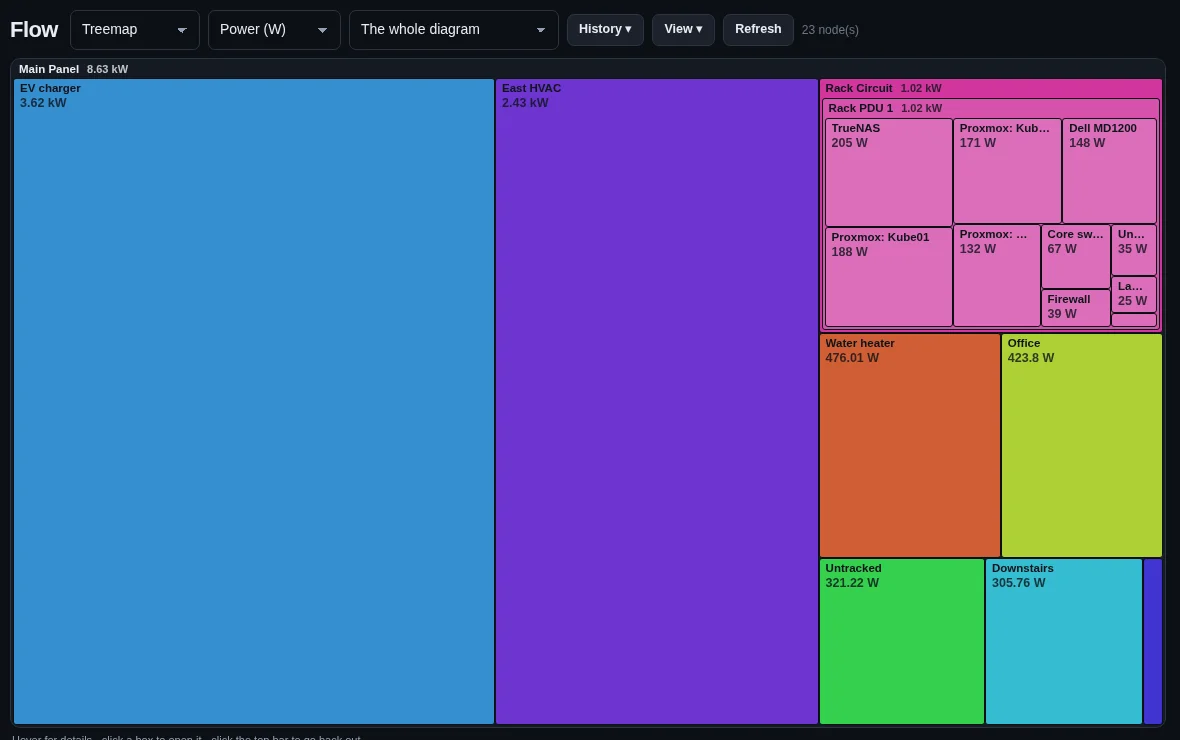

Every node, every metric, live. Sankey, sunburst or treemap.

Energy flow

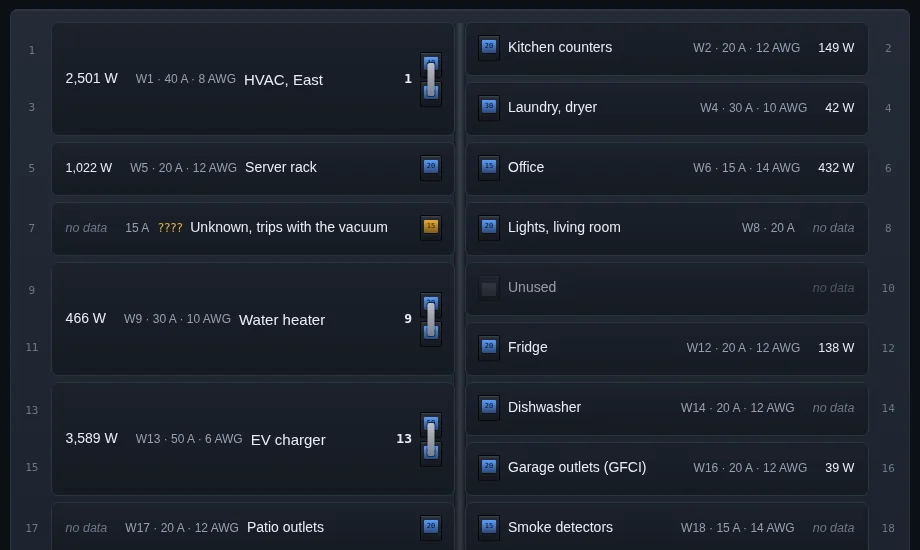

Breaker panels

The panel schedule as it is in the box: slot, breaker, wire, gauge, rating and live load per circuit.

Panels and circuits

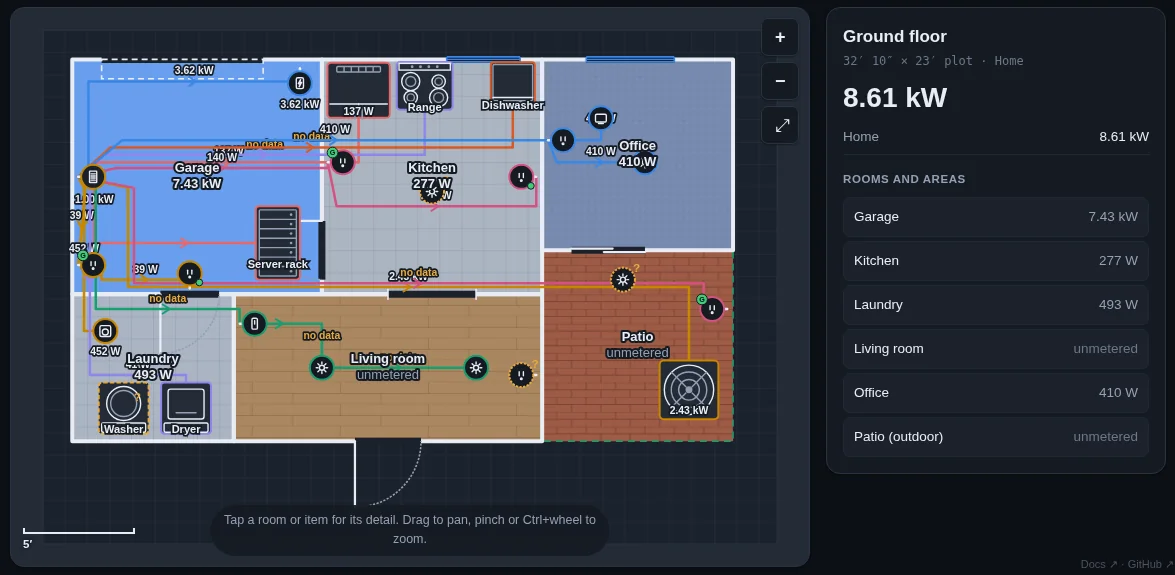

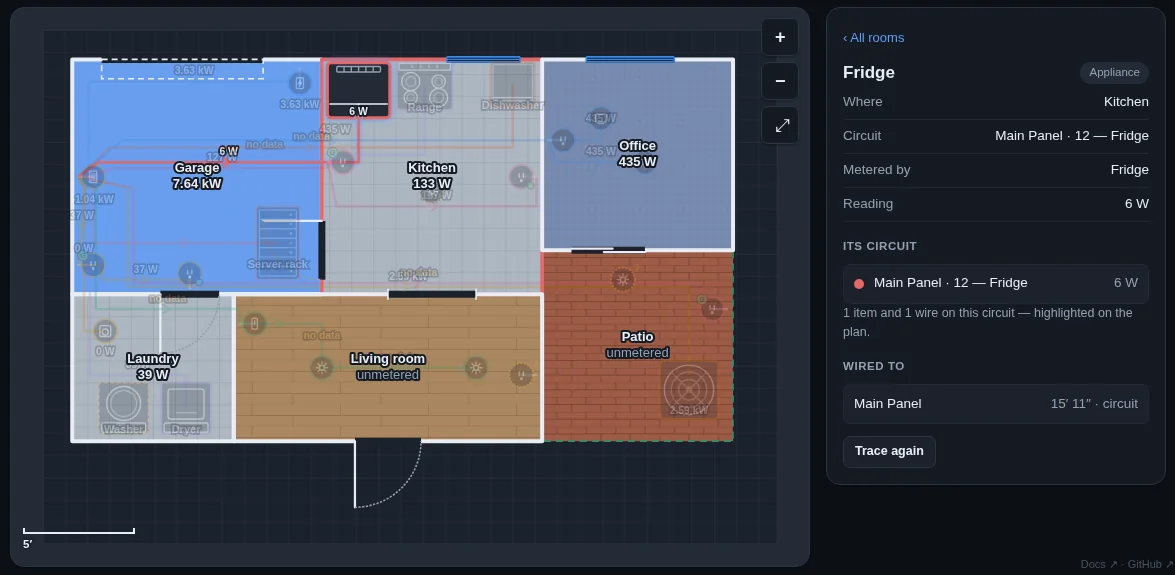

Floor plans and circuit mapping

Rooms, doors and windows, outlets, lights and appliances, and the cable runs between them. Rooms are shaded by what they draw.

Click an item for its circuit, meter and wiring.

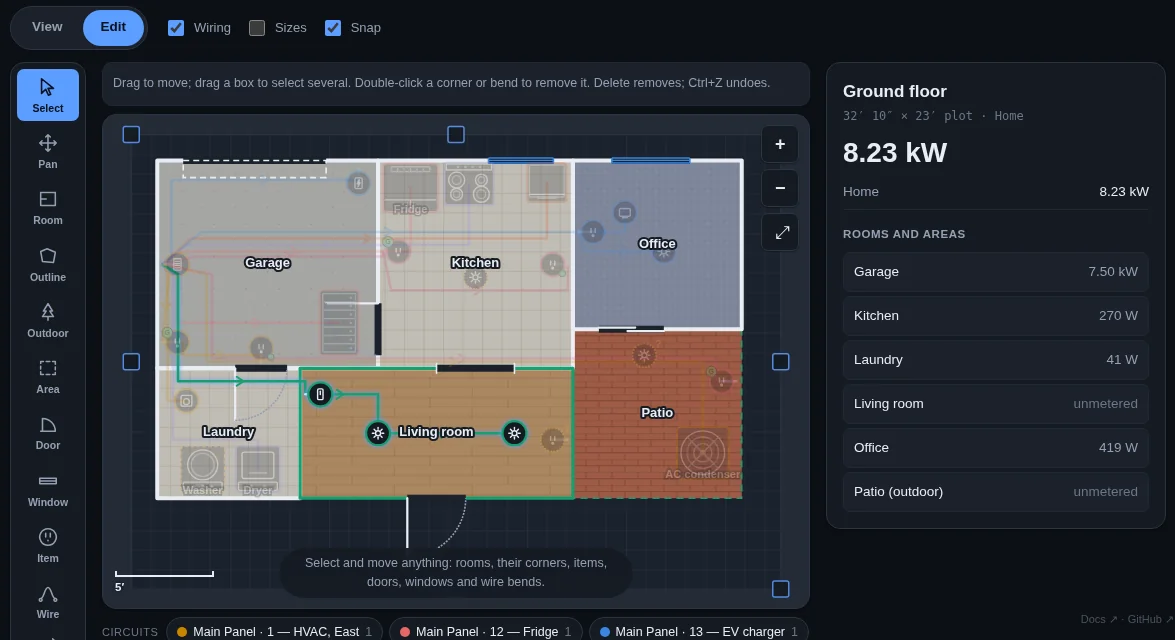

Draw rooms, place items and route wires in the editor.

Floor plans

Vertiv / Geist rack PDUs

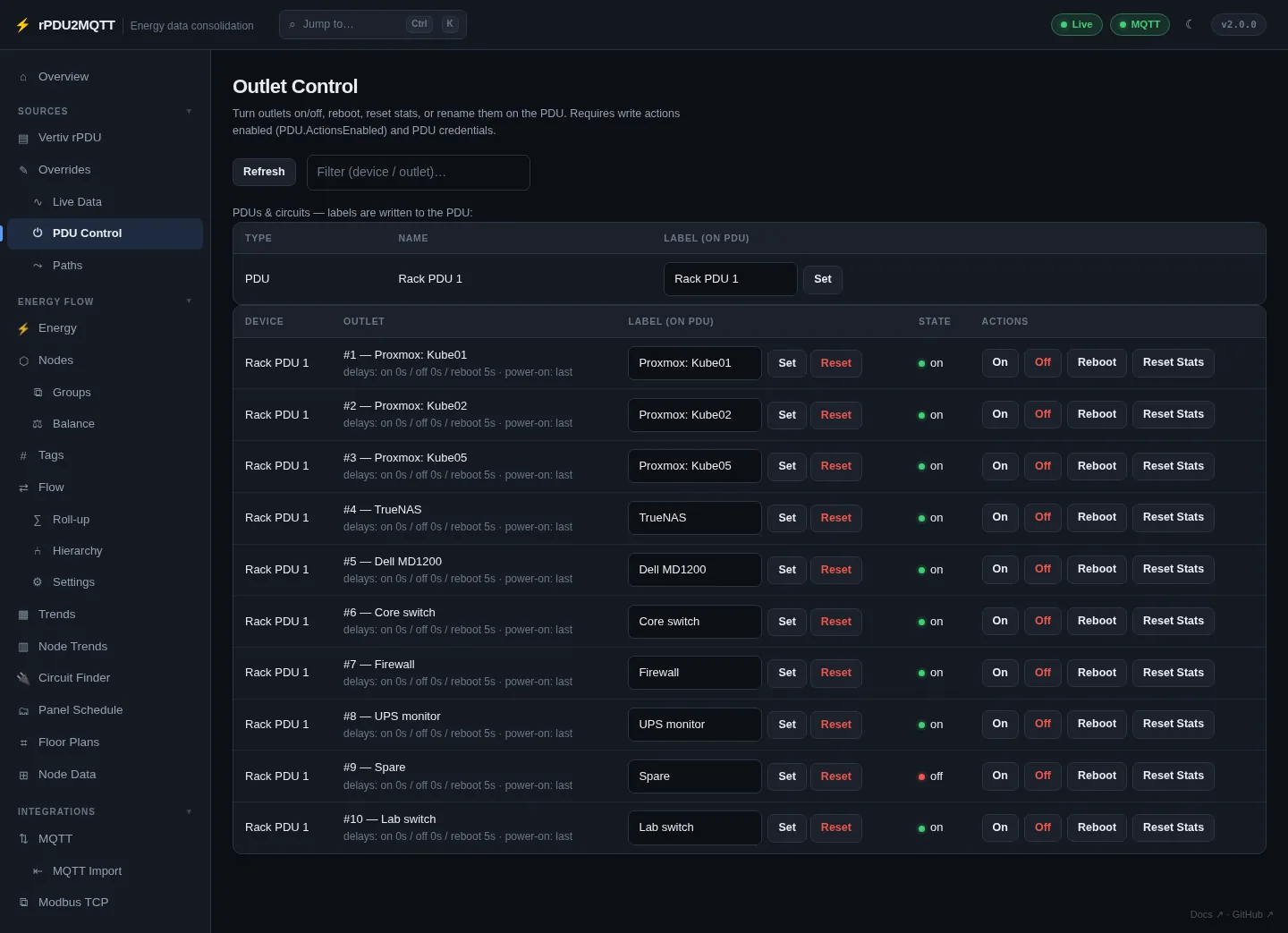

Per-outlet power, energy, current and voltage. Outlet on, off and reboot from the GUI or Home Assistant. OneView cluster roll-ups and group actions.

Vertiv rPDU

Everything in the GUI

Every setting has a page. No YAML needed.

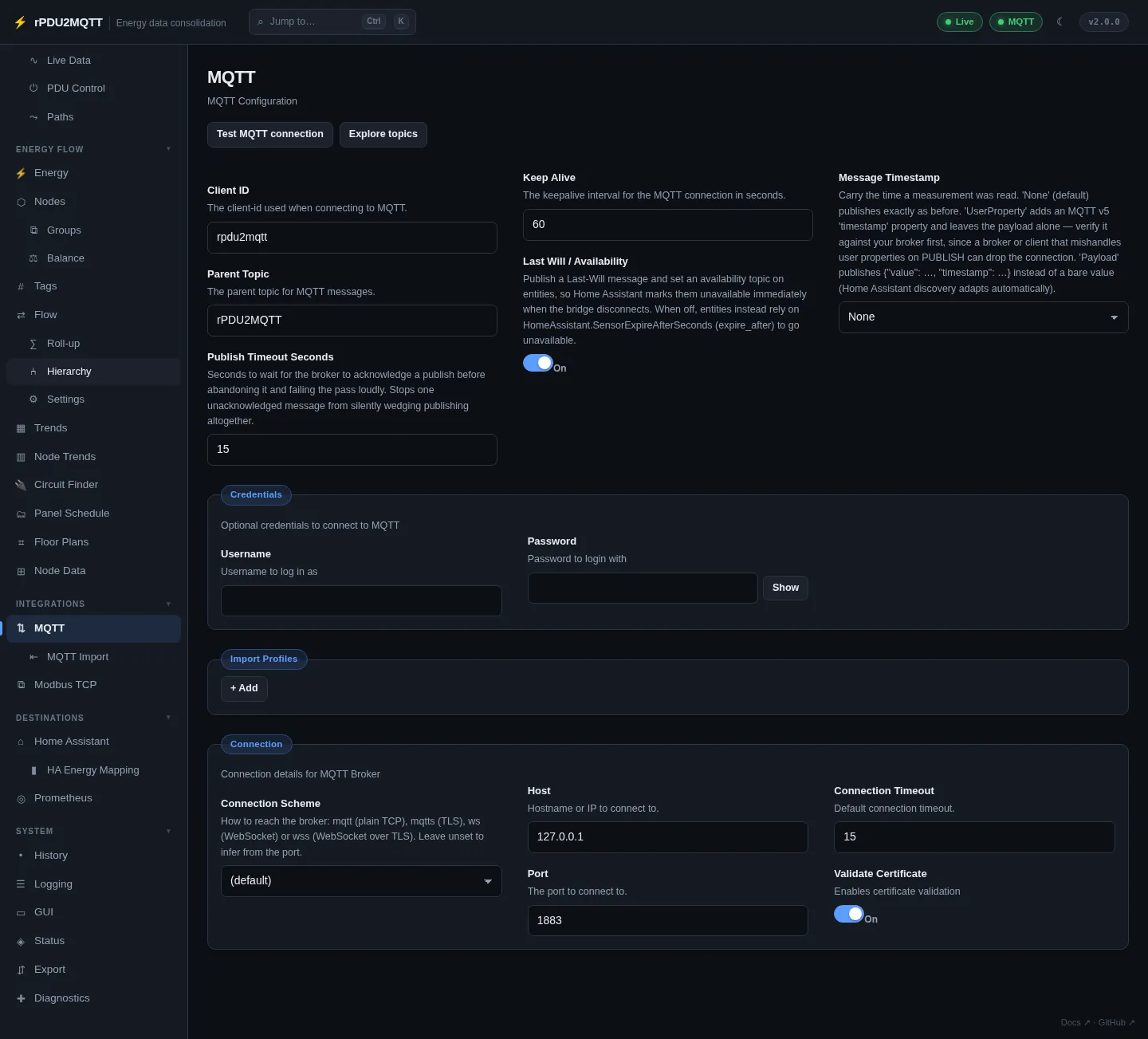

Sources and destinations

Deployment

Docker, Docker Compose, Helm chart, Argo CD, optional RpduConfig custom resource. Deployment

Help

• Discord (tag @XtremeOwnage)
• GitHub issues
