Live Data, PDU Control, Paths

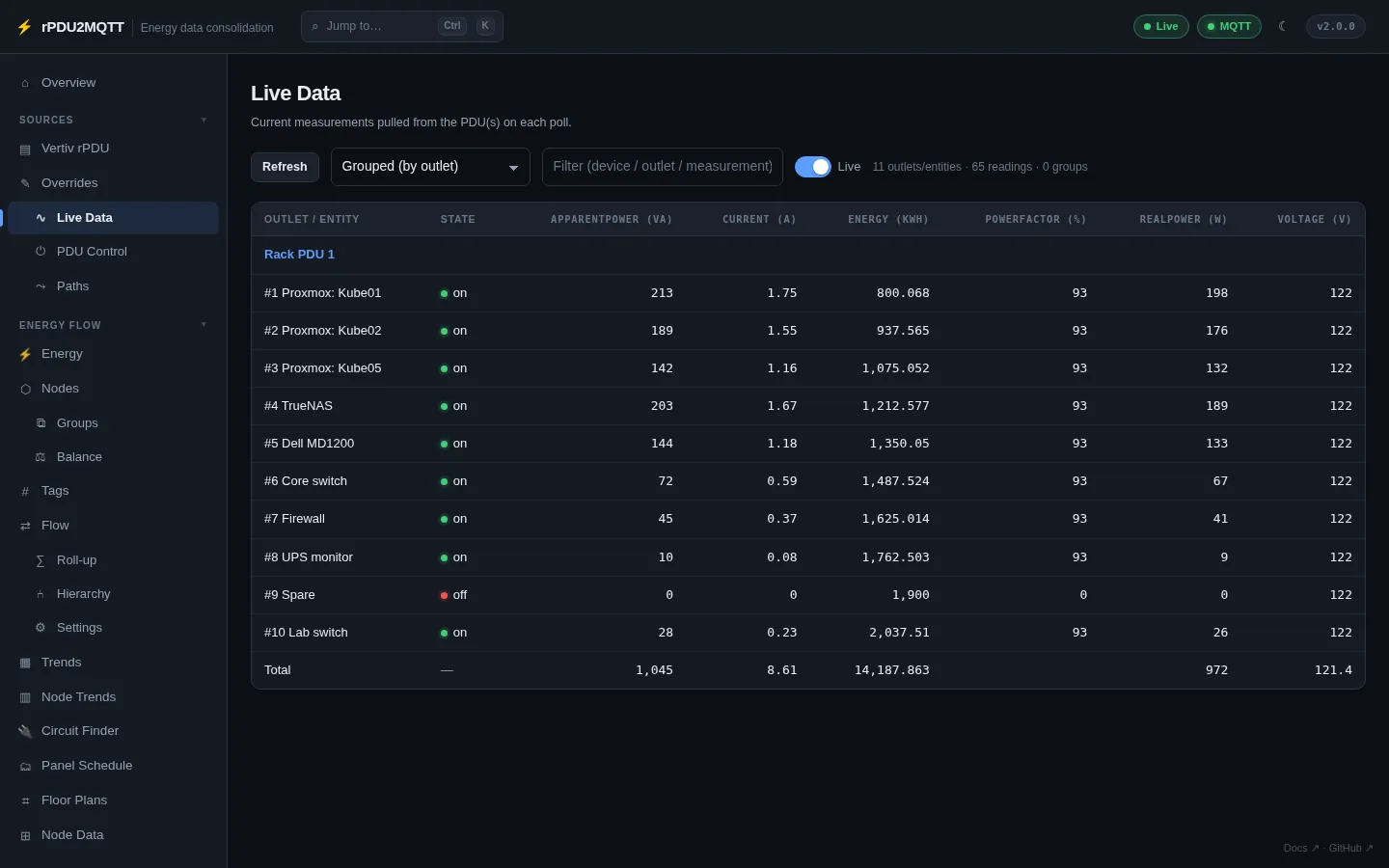

Live Data
Sources › Live Data. Every PDU reading. Grouped (by outlet) or Flat (one row per reading).
PDU Control
Sources › PDU Control. Needs Enable Write Actions and PDU credentials.
| Control | Action |
|---|---|
| Label (on PDU) + Set | Writes the PDU, circuit or outlet label to the PDU |
| Reset | Clears the label on the PDU |
| On / Off / Reboot | Outlet power |
| Reset Stats | Resets the outlet's energy counter |
| Group All On / All Off / Reboot All | OneView groups |
Each row shows the outlet's on / off / reboot delays and power-on action. The next poll shows the state the PDU reports.

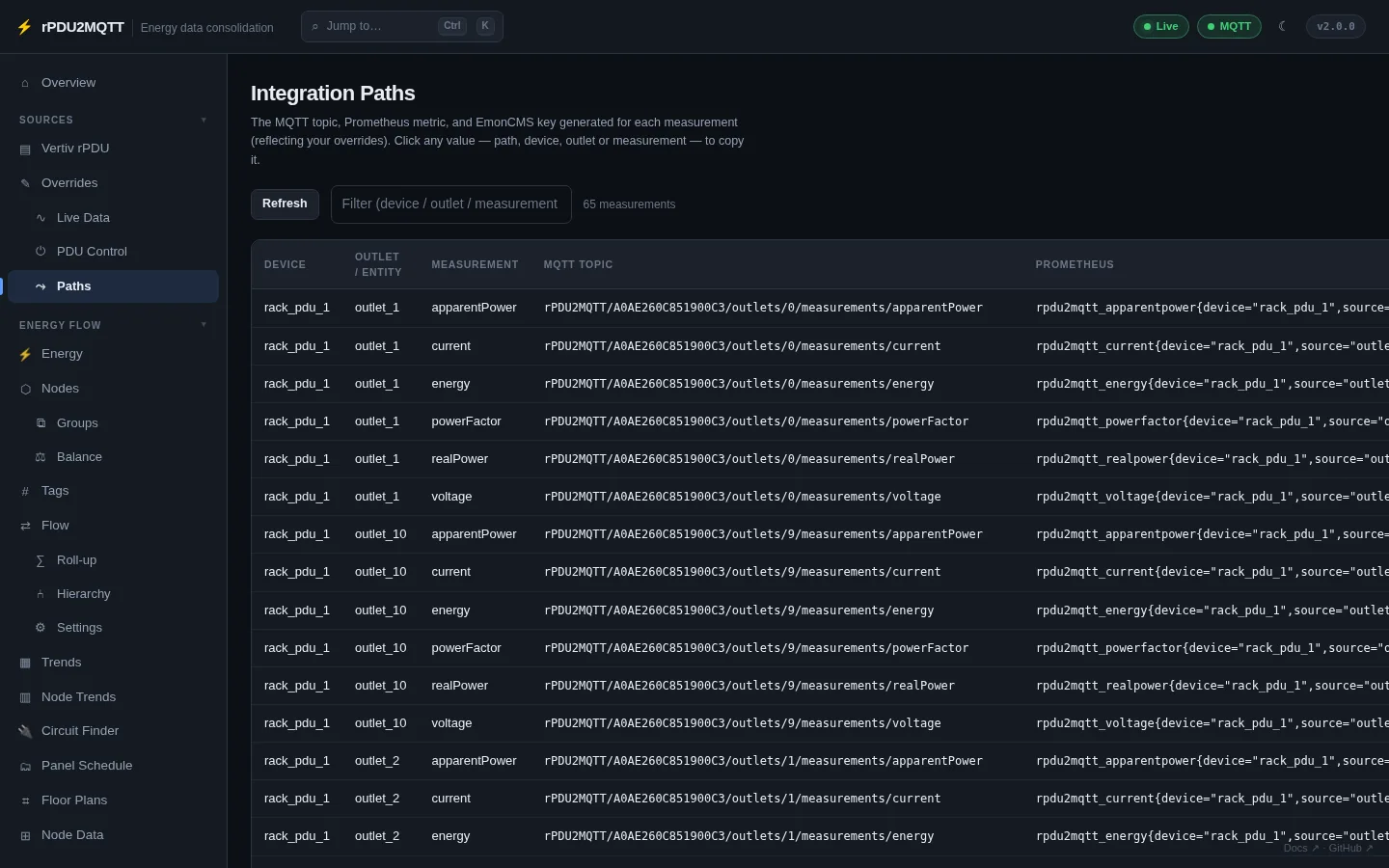

Paths
Sources › Paths. The MQTT topic, Prometheus metric and EmonCMS input for every measurement.
Topic layout: MQTT topics.
