GUI and authentication

Turn the GUI on with Gui.Enabled: true in the config file. Browse to http://<host>:<port>.

GUI: System › GUI.

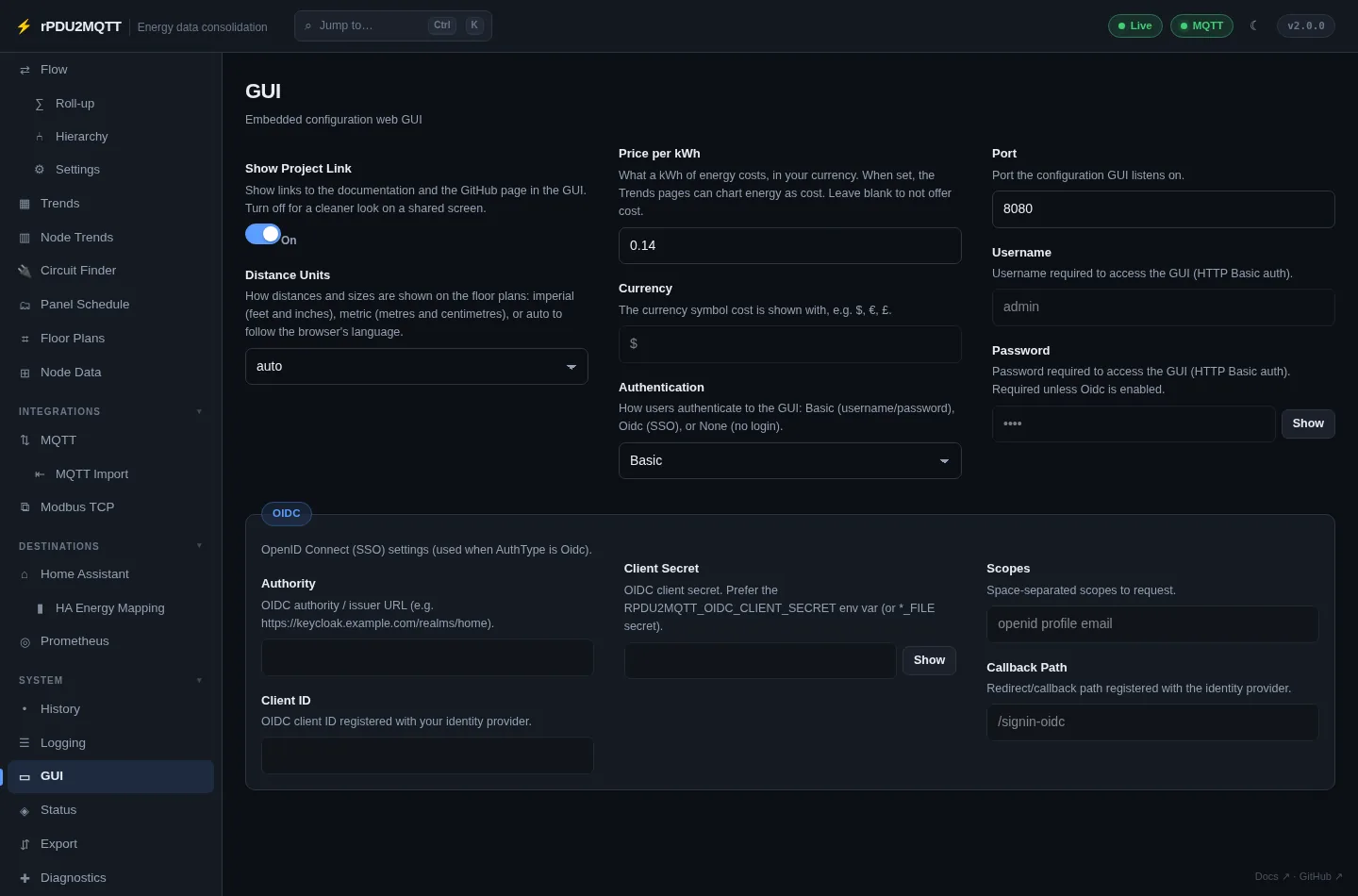

GUI settings page

Field	Setting	Default	Notes
Port	`Gui.Port`	`8080`	Restart to apply
Authentication	`Gui.AuthType`	`Basic`	`Basic`, `Oidc`, `None`
Username	`Gui.Username`		Basic
Password	`Gui.Password`		Basic. Or `RPDU2MQTT_GUI_PASSWORD`
Show Project Link	`Gui.ShowProjectLink`	on	Docs and GitHub links in the footer
Distance Units	`Gui.DistanceUnits`	`auto`	`auto`, `imperial`, `metric`. Floor plans
Price per kWh	`Gui.EnergyPrice`	blank	Enables cost charts on Trends
Currency	`Gui.Currency`	`$`

Basic

Username and password over HTTP Basic auth. Use TLS (reverse proxy) outside a trusted network.

OIDC

Set Authentication to Oidc and fill the OIDC box.

Field	Setting	Default
Authority	`Gui.Oidc.Authority`	e.g. `https://keycloak.example.com/realms/home`
Client ID	`Gui.Oidc.ClientId`
Client Secret	`Gui.Oidc.ClientSecret`	Or `RPDU2MQTT_OIDC_CLIENT_SECRET`
Scopes	`Gui.Oidc.Scopes`	`openid profile email`
Callback Path	`Gui.Oidc.CallbackPath`	`/signin-oidc`

Register https://<gui-host>/signin-oidc as the redirect URI with the provider.
X-Forwarded-Proto and X-Forwarded-Host are honoured behind a TLS-terminating proxy.
A Log out link appears in the header.

None

No login. Anyone who can reach the port has full access. A warning is logged at startup.

Saving

Save writes config.yaml and keeps the previous file as config.yaml.bak.
A read-only config (ConfigMap, :ro mount) disables Save. With the RpduConfig custom resource, Save patches the resource. See Kubernetes CRD.
In Docker, mount config.yaml without :ro and publish the GUI port.
Host, port and credential changes need a restart (Diagnostics › Restart). Name, override and template changes apply with Republish discovery.
Feature switches (Gui.Enabled, HomeAssistant.DiscoveryEnabled, Prometheus.Exporter, EmonCMS.Enabled, History.Enabled, Cache.Enabled, Api.Enabled, Health.Enabled, Operator.Enabled) are set in the config file or chart values, not the GUI. Pages for disabled features are hidden.
Health, Api, PlanStorage and Cache have no GUI page.

YAML

Gui:
  Enabled: true
  Port: 8080
  AuthType: Basic
  Username: admin
  # Password: RPDU2MQTT_GUI_PASSWORD
  EnergyPrice: 0.14
  Currency: "$"

Gui:
  Enabled: true
  AuthType: Oidc
  Oidc:
    Authority: "https://keycloak.example.com/realms/home"
    ClientId: "rpdu2mqtt"
    Scopes: "openid profile email"
    CallbackPath: "/signin-oidc"

All settings: GUI settings reference.
