EmonCMS

Sends measurements to EmonCMS every poll. EmonCMS creates the inputs.

Turn on with EmonCMS.Enabled: true in the config file. The page appears under Destinations once enabled.

GUI

Destinations › EmonCMS.

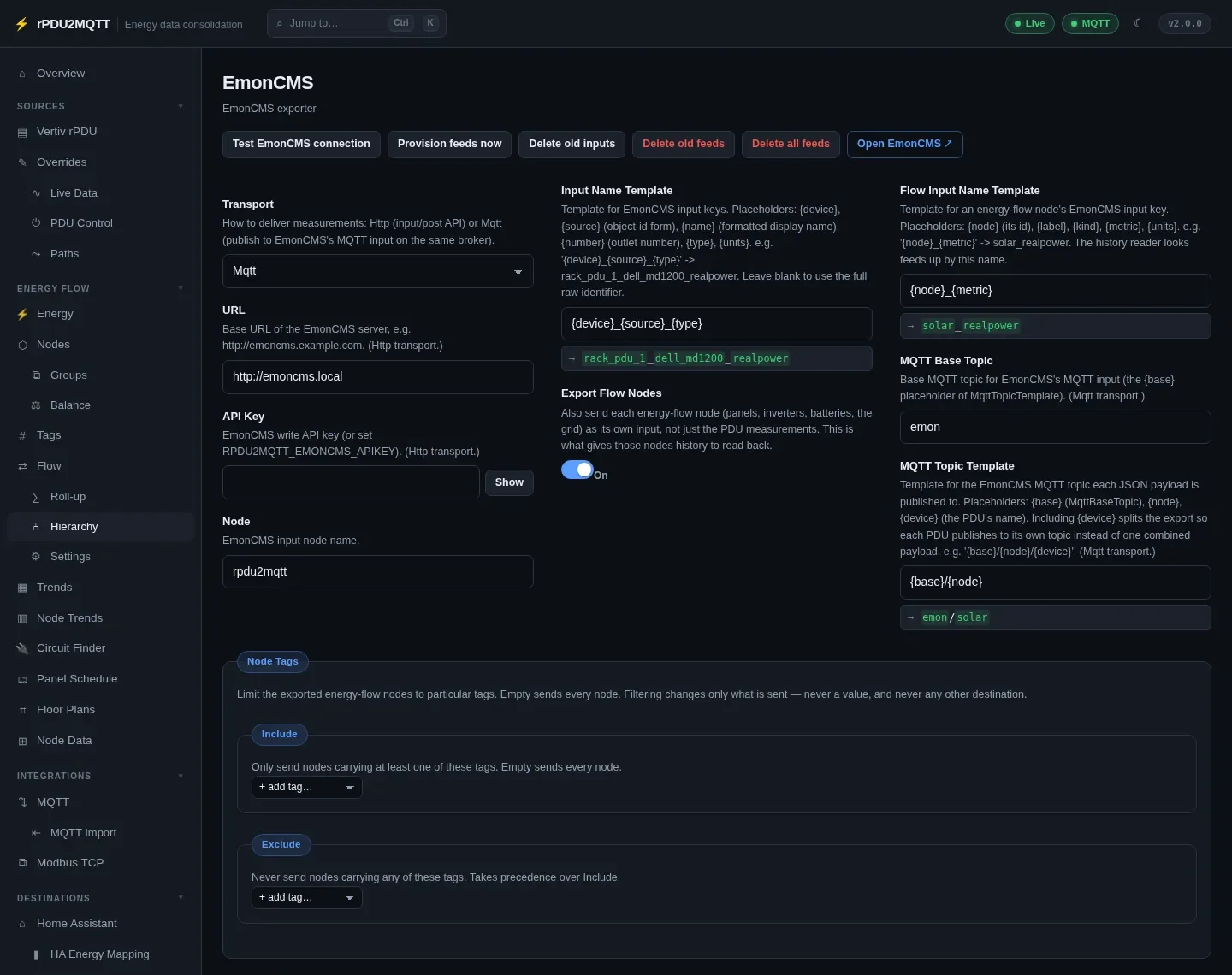

EmonCMS settings page

Field	Setting	Default	Notes
Transport	`EmonCMS.Transport`	`Http`	`Http` (input/post API) or `Mqtt` (EmonCMS MQTT input on the same broker)
URL	`EmonCMS.Url`		Http
API Key	`EmonCMS.ApiKey`		Write key. Or `RPDU2MQTT_EMONCMS_APIKEY`. Http
Node	`EmonCMS.Node`	`rpdu2mqtt`	Input node name
Input Name Template	`EmonCMS.InputNameTemplate`	`{device}_{source}_{type}`	Blank = full raw identifier
Export Flow Nodes	`EmonCMS.ExportFlowNodes`	on	Send each energy-flow node as an input
Flow Input Name Template	`EmonCMS.FlowInputNameTemplate`	`{node}_{metric}`
MQTT Base Topic	`EmonCMS.MqttBaseTopic`	`emon`	Mqtt
MQTT Topic Template	`EmonCMS.MqttTopicTemplate`	`{base}/{node}`	Mqtt. Add `{device}` for one topic per PDU
Node Tags › Include / Exclude	`EmonCMS.NodeTags`	all nodes

EmonCMS.Path (default input/post) sets the API path for Http.

Template placeholders

Template	Placeholders
Input Name Template	`{device}`, `{source}`, `{name}`, `{number}`, `{type}`, `{units}`
Flow Input Name Template	`{node}`, `{label}`, `{kind}`, `{metric}`, `{units}`
MQTT Topic Template	`{base}`, `{node}`, `{device}`

Results are lower-cased; non-alphanumeric characters become _.

Buttons

Button	Action
Test EmonCMS connection	Checks the server and API key (Http) or the broker (Mqtt).
Provision feeds now	Creates and updates feeds.
Delete old inputs / Delete old feeds	Lists inputs or feeds this bridge no longer sends or provisions, and deletes them on confirmation.
Delete all feeds	Deletes every feed this bridge created, and its data. Asks three times.
Open EmonCMS	Opens the server.

Feeds

Under Feeds. Http transport; needs a read/write API key.

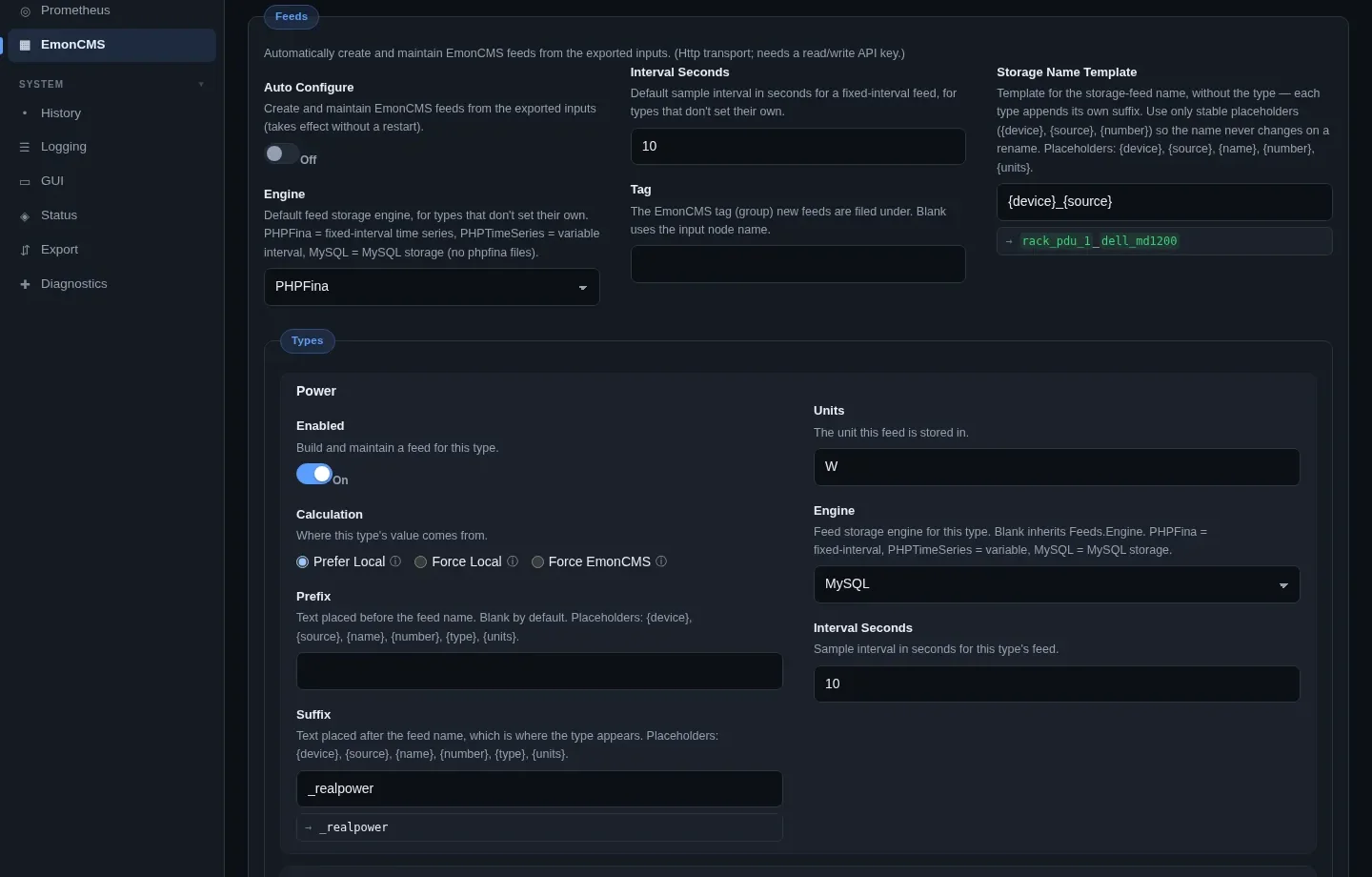

EmonCMS feed settings

Field	Setting	Default
Auto Configure	`EmonCMS.Feeds.AutoConfigure`	off
Engine	`EmonCMS.Feeds.Engine`	`PHPFina`
Interval Seconds	`EmonCMS.Feeds.IntervalSeconds`	`10`
Tag	`EmonCMS.Feeds.Tag`
Storage Name Template	`EmonCMS.Feeds.StorageNameTemplate`	`{device}_{source}`

Per type (realpower, energy, energy_d, apparentpower, current, voltage, frequency, powerfactor), under Types: Enabled, Calculation, Prefix, Suffix, Units, Engine, Interval Seconds.

Calculation	Value written
Prefer Local	The bridge's reading. Where it has none, EmonCMS works it out.
Force Local	The bridge's reading only.
Force EmonCMS	EmonCMS works it out. Default for `energy_d`.

Virtual (EmonCMS.Feeds.Virtual): optional friendly-named virtual feeds. Name Template default {name} {type}.

Reading feeds back

Node sources of type emoncms read feed values back (Nodes › Bindings). Poll interval: EmonCMS.Source.PollIntervalSeconds, default 30, range 5–3600.

EmonCMS is also a history backend.

The Diagnostics page shows the last export result.

YAML

EmonCMS:
  Enabled: true
  Transport: Http
  Url: "http://emoncms.example.com"
  # ApiKey: RPDU2MQTT_EMONCMS_APIKEY
  Node: rpdu2mqtt
  InputNameTemplate: "{device}_{source}_{type}"
  Feeds:
    AutoConfigure: true
    Engine: PHPFina
    IntervalSeconds: 10

All settings: EmonCMS settings reference.
