Floor plans

Energy Flow › Floor Plans. Each floor at real size: rooms, outdoor zones, doors, windows, placed items and the cable runs between them. Rooms are shaded by what they draw.

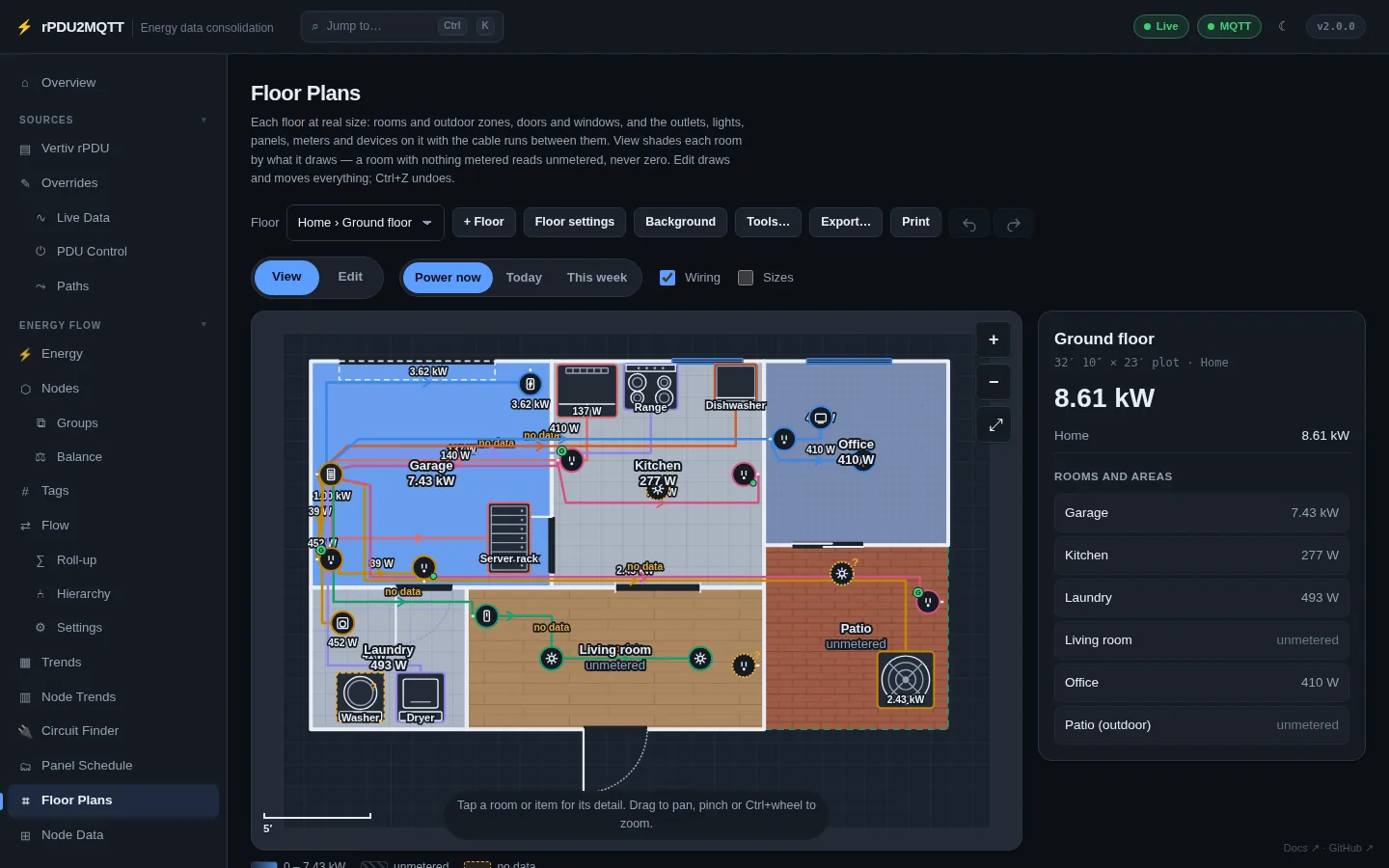

Floor plan with wiring

View

Control
Floor Pick site and floor
View / Edit Mode
Power now / Today / This week Room shading
Wiring Show cable runs
Sizes Wall lengths and floor areas
Circuits (below the plan) One chip per breaker with its item count. Click to highlight the circuit.

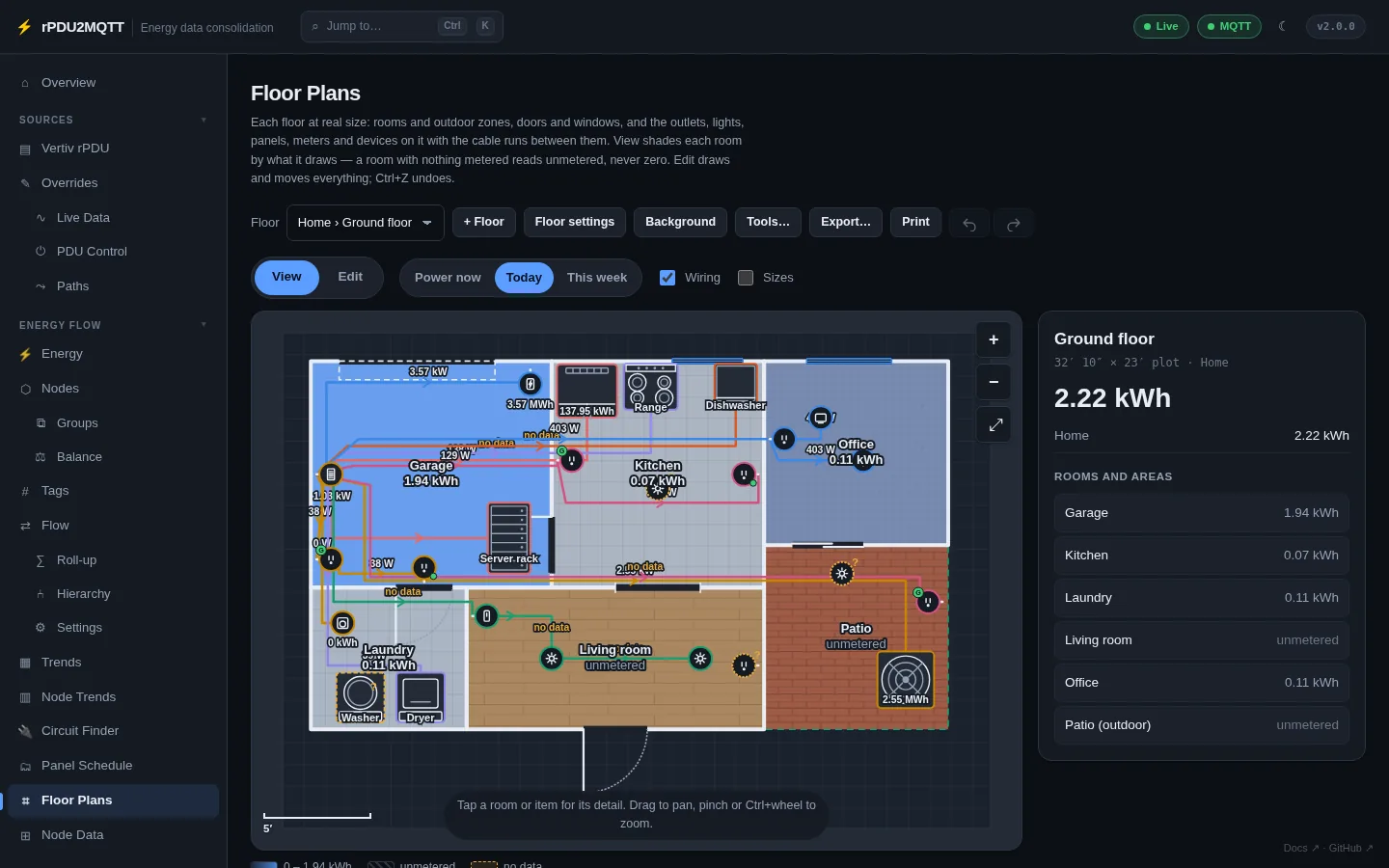

Rooms shaded by today's energy

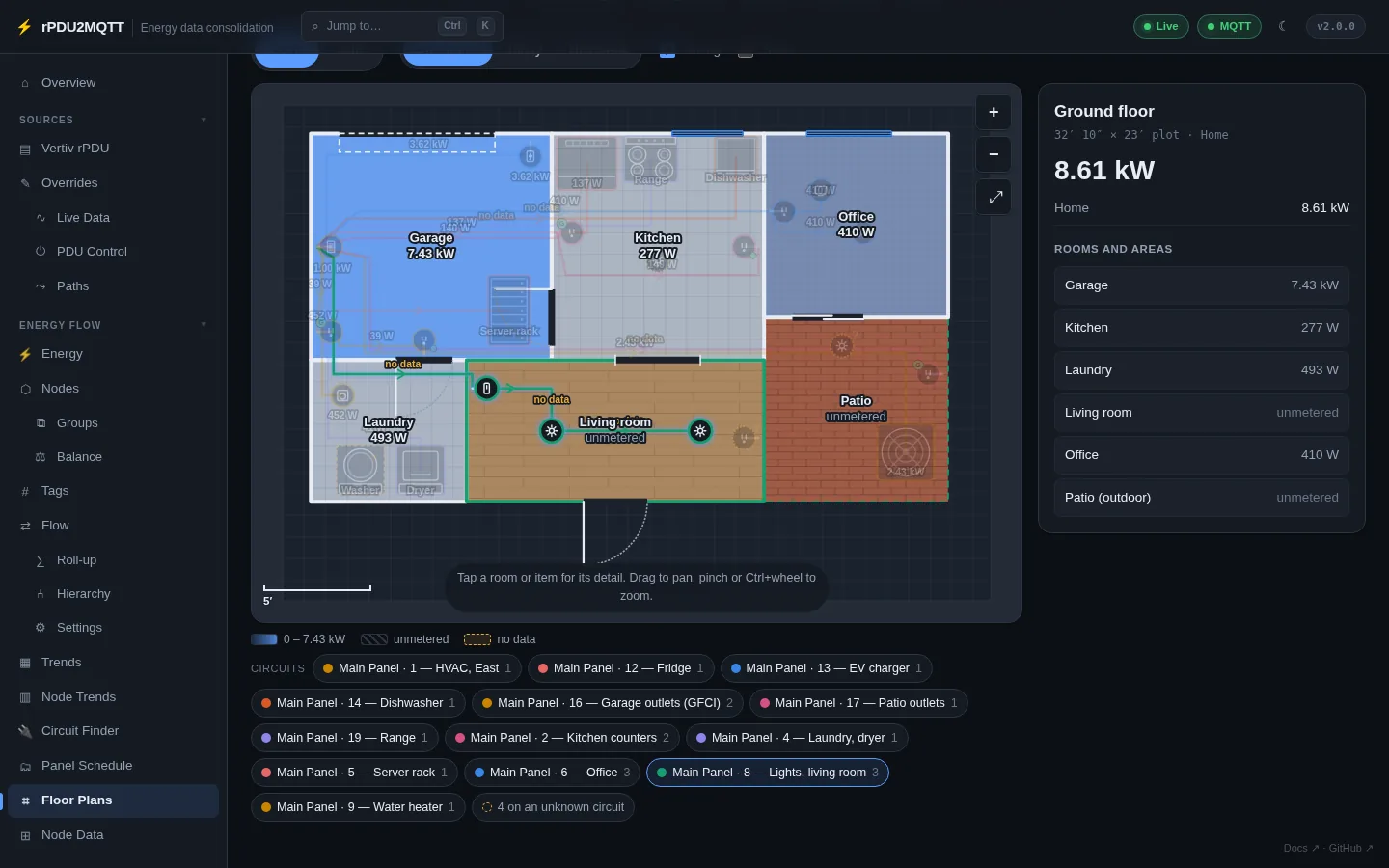

Lights circuit highlighted

Click an item for its circuit, meter, reading and what it is wired to.

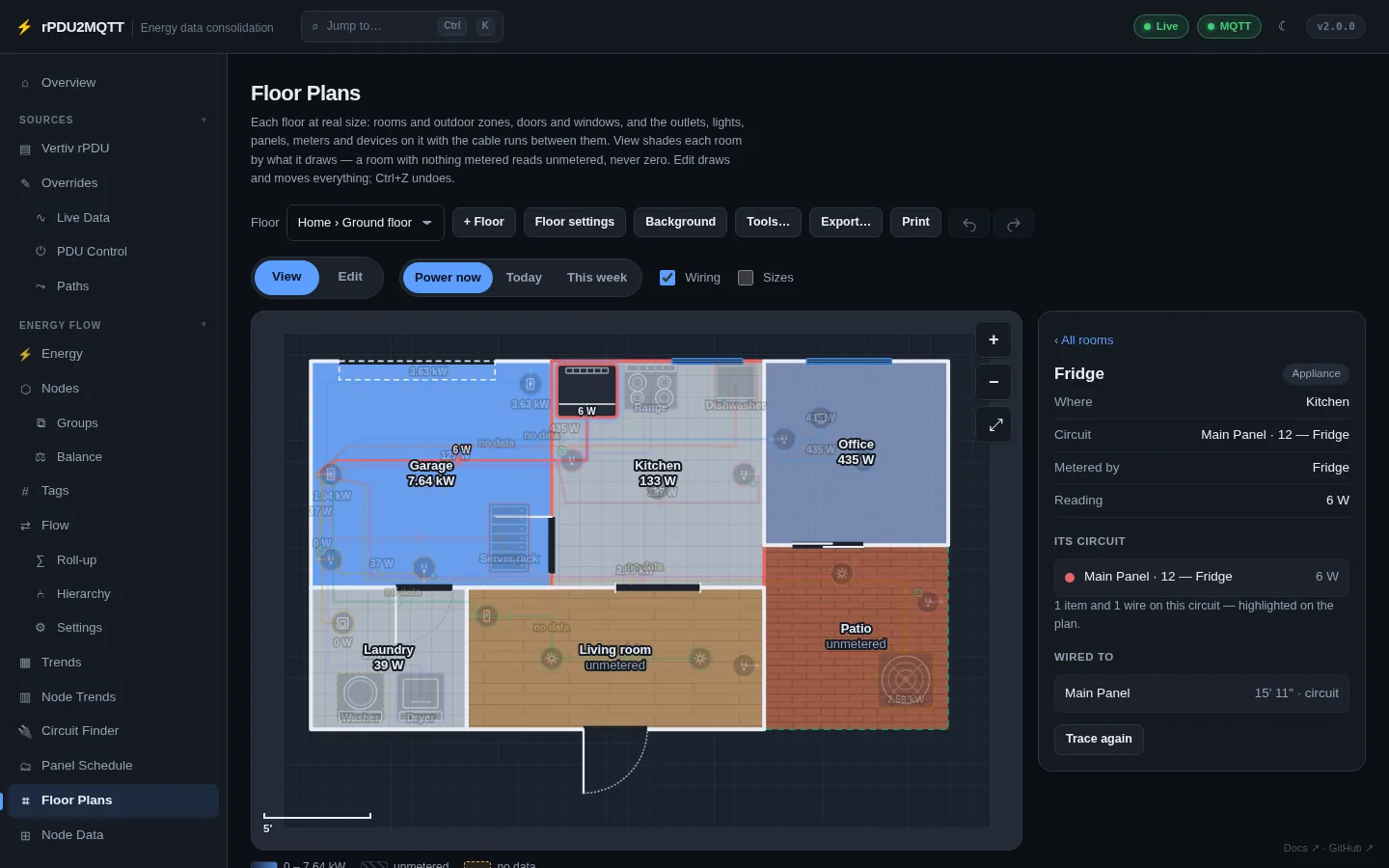

Fridge selected

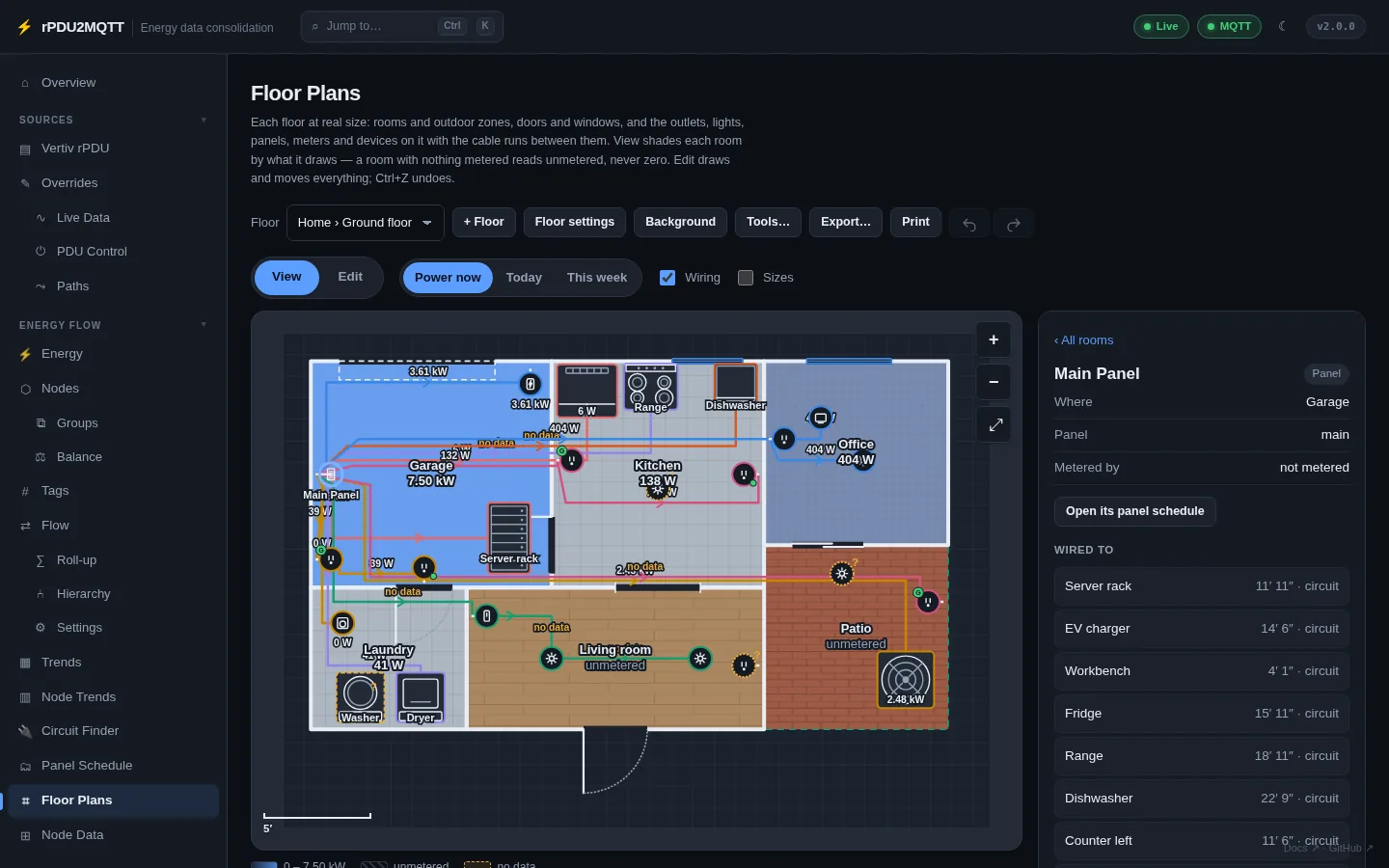

Main panel selected, listing every run from it

  • A room with nothing metered is unmetered (hatched). A total missing a reading is no data.
  • Rooms count toward their areas, floor and site.
  • A circuit lists its metered devices and its unmetered remainder. Metered devices reading more than the circuit are flagged.

Edit

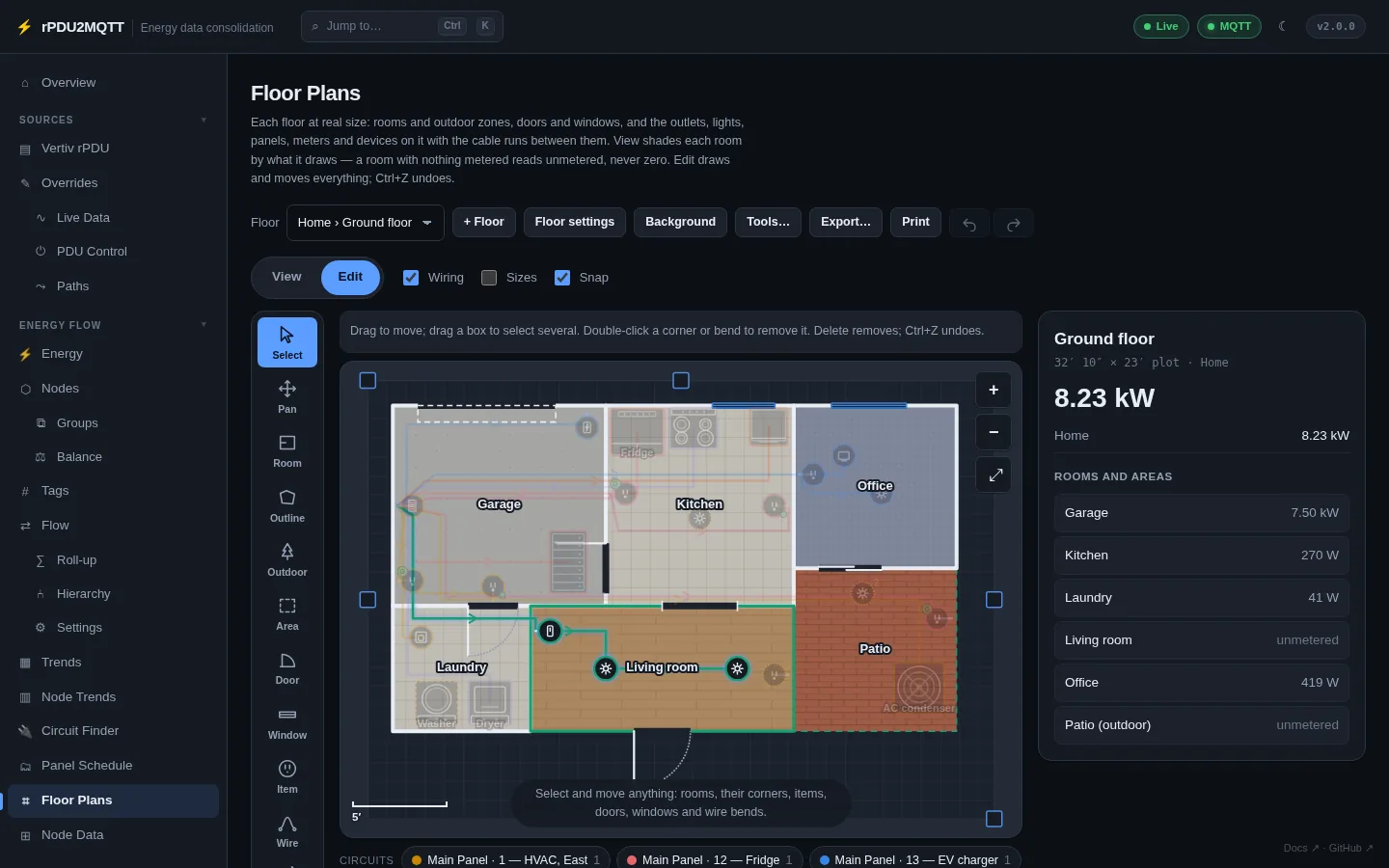

Floor plan editor

Tool Key
Select V Select, drag, box-select. Shift / Ctrl / ⌘-click toggles. Ctrl+A all. Arrows nudge.
Pan H Drag to pan
Room R Drag a rectangle, or Add a room by size
Outline P Click each corner; click the first to close
Outdoor O Yard, porch, patio, driveway, deck
Area A Area spanning rooms
Door / Window D / W Click a wall. Door, double, sliding, garage, window, opening
Item I Place an item
Wire L From the supply item, each bend, to the load item
Constrain K Coincident, in line, parallel, square, level, plumb, fixed length, angle
Measure M Measure, or set the scale from a known distance

Keys: Ctrl+Z / Ctrl+Y undo / redo, Delete removes, Esc stops drawing, + − 0 zoom.

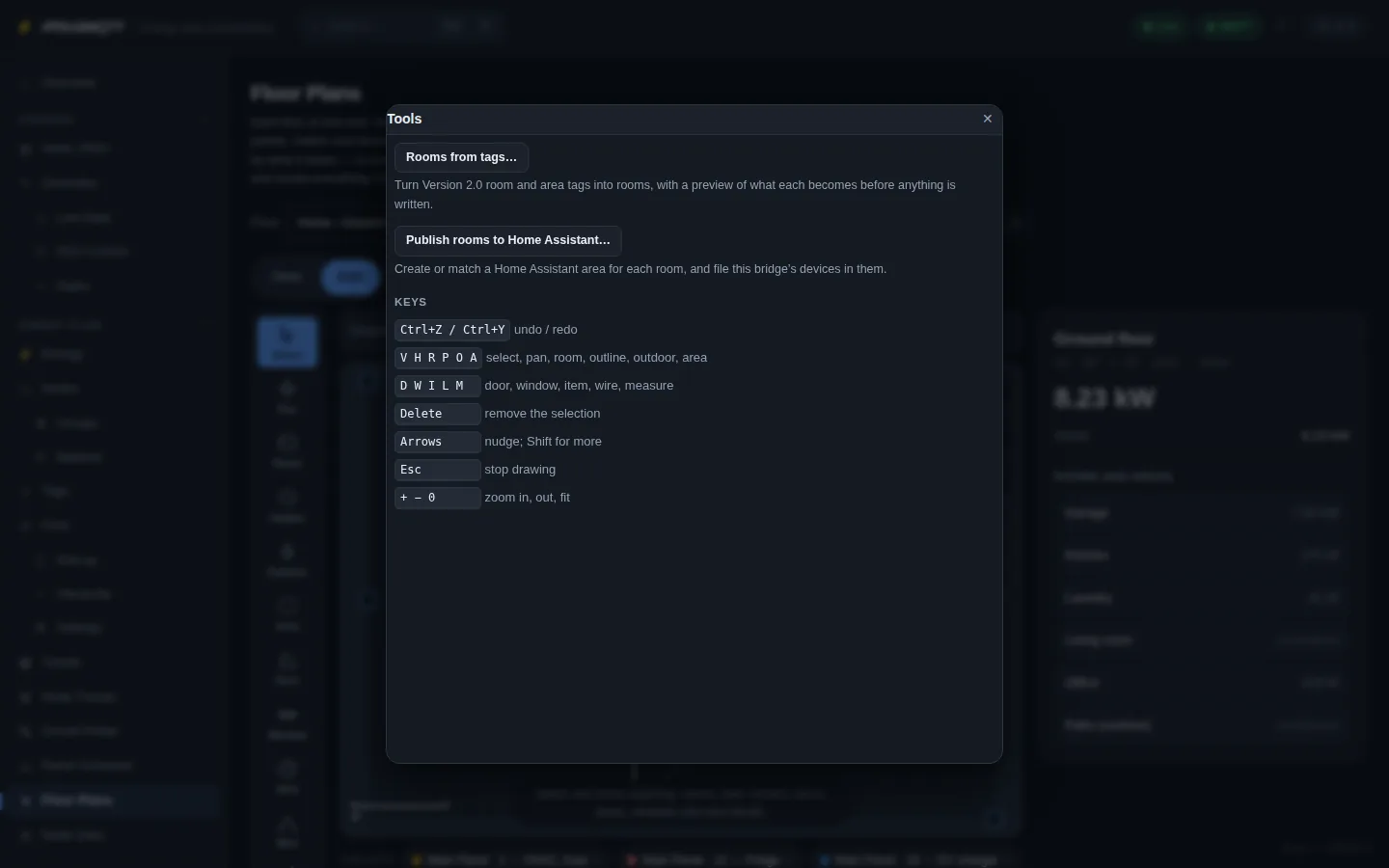

Tools menu

Items

outlet, switch, fixture, fan, appliance, device, hvac, ev-charger, junction, panel, meter, pole, transformer, solar, battery, inverter, generator.

  • At real size: washer, dryer, fridge, freezer, range, dishwasher, water heater, furnace, condenser, rack, hot tub.
  • Wall items (outlets, switches) snap to the nearest wall and face the room.
  • GFCI outlet: everything wired from its load side is protected.
  • Circuit: the breaker feeding it. Metered by: the node measuring it.
  • Trace its circuit: switch a load on the item on and off; the matching channel is offered.

Wires

Kind
circuit Breaker to what it feeds
feeder Panel to subpanel
service Pole or transformer to meter and main panel

Wiring an item with no circuit to one on a known circuit puts it on that circuit.

Rooms and walls

  • Shared corners move together. Alt pulls a shared corner apart. Double-click a wall's middle dot to add a corner.
  • Rooms, areas and single walls can be locked.
  • Surfaces: wood, tile, carpet, concrete, stone, grass, gravel, dirt, deck, pavers, water, snow, stairs. SurfaceColor recolours.

Units

Gui.DistanceUnits: auto, imperial, metric. Lengths accept 12' 6", 12ft 6in, 150", 3.75 m, 375 cm. Scale is drawing units per metre (default 100).

Other controls

Control
+ Floor Add a floor
Floor settings Name, level, plot size, ground, Arrange
Background Upload a plan image (PNG, JPEG, WebP, SVG)
Tools… › Rooms from tags Turn room-like tags into rooms and areas, with a preview
Tools… › Publish rooms to Home Assistant Create or match HA areas and file devices into them, with a preview
Export… SVG, PNG, or all floors as JSON. Import floor plans… reads it back.
Print Print the floor

Where a node is

In order: its Location; an AutoLocations rule for its exact id; a placement metering it; a wildcard AutoLocations rule; the rooms its circuit serves; its feeder's location.

Home Assistant

  • Devices carry their room as suggested_area in discovery.
  • With MQTT export on, every room, area, floor and site is published as a tier with power, energy and energy today.

Plan storage

Plan images are stored outside the configuration, referenced by id. Max size PlanStorage.MaxMegabytes (10).

Deployment Setting
Helm floorPlans.persistence.enabled: true (or existingClaim)
Docker Mount a volume; set PlanStorage.Directory or RPDU2MQTT_PLANS_DIRECTORY
S3 bucket PlanStorage.ObjectStore; secret in RPDU2MQTT_PLANS_SECRET_KEY
Cache on, nothing else set Stored in Valkey

A banner shows when no persistent storage is configured.

YAML

Gui:
  DistanceUnits: imperial
EnergyFlow:
  Sites:
    - Id: home
      Name: Home
      Floors:
        - Id: ground
          Name: Ground floor
          Level: 0
          Width: 1000
          Height: 700
          Scale: 100
          Ground: grass
          Rooms:
            - { Id: garage, Name: Garage, Surface: concrete, Shape: [ {X: 40, Y: 40}, {X: 380, Y: 40}, {X: 380, Y: 360}, {X: 40, Y: 360} ] }
            - { Id: patio, Name: Patio, Outdoor: true, Surface: pavers, Shape: [ {X: 680, Y: 300}, {X: 940, Y: 300}, {X: 940, Y: 560}, {X: 680, Y: 560} ] }
          Openings:
            - { Id: o_front, Kind: door, X: 470, Y: 560, Angle: 0, Width: 90 }
            - { Id: o_gdoor, Kind: garage-door, X: 190, Y: 40, Angle: 0, Width: 220 }
  Placements:
    - { Id: p_panel, Kind: panel, Label: Main Panel, Room: garage, Floor: ground, X: 48, Y: 200, Facing: 0, Panel: main }
    - { Id: p_fridge, Kind: appliance, Label: Fridge, Room: kitchen, Floor: ground, X: 430, Y: 82, Width: 85, Depth: 75, Footprint: fridge, Circuit: main/12, Node: fridge }
    - { Id: p_ko1, Kind: outlet, Label: Counter left, Room: kitchen, Floor: ground, X: 388, Y: 180, Facing: 0, Gfci: true, Circuit: main/2 }
  Runs:
    - { Id: r_fridge, Kind: circuit, Floor: ground, Circuit: main/12, From: p_panel, To: p_fridge, Points: [ {X: 76, Y: 180}, {X: 430, Y: 180} ] }
  AutoLocations:
    - { Match: "outlet:rack_pdu_1:*", Location: garage }
PlanStorage:
  Directory: /data/plans
  MaxMegabytes: 10

Circuit is <panel id>/<breaker number>. Ids are unique across sites, floors, rooms and areas.
