Energy flow

A hierarchy of nodes: grid, solar, battery, inverter, panels, breakers, loads. PDUs and their outlets are added automatically. Each node rolls up the nodes it feeds, per metric.

Pages

GUI page
Energy Solar, battery, grid and home tiles, gauges, self-sufficiency
Nodes Add and edit nodes and their live sources. Nodes
Groups Several nodes shown as one. Groups
Balance Which nodes make up Solar, Grid, Battery and Home
Tags Tags for filters and exports. Tags
Flow, Roll-up, Hierarchy, Settings Diagrams and the roll-up. Flow
Trends, Node Trends, Node Data History. Trends
Circuit Finder, Panel Schedule Breaker panels. Panels and circuits
Floor Plans Rooms, items and wiring. Floor plans

Energy

Energy Flow › Energy. Live or today's energy for Solar, Battery, Grid and Home. History shows a past moment. Click a tile for that node's day.

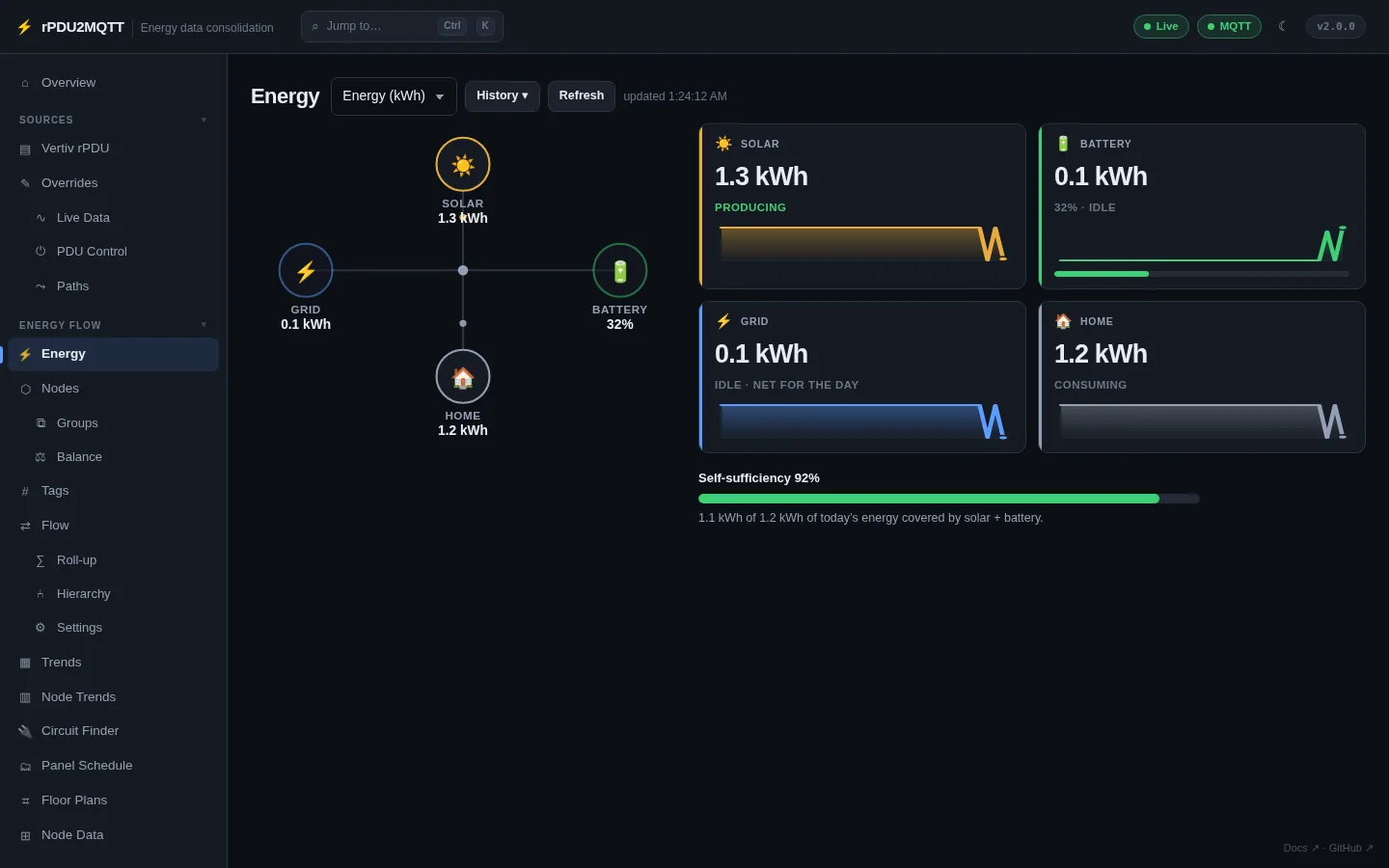

Energy page

A tile shows a gauge when the node has Gauge max set on Nodes.

Balance

Energy Flow › Balance. Which nodes are summed into each site total. Used by Energy, Overview, Trends, self-sufficiency and the Home Assistant Energy Dashboard.

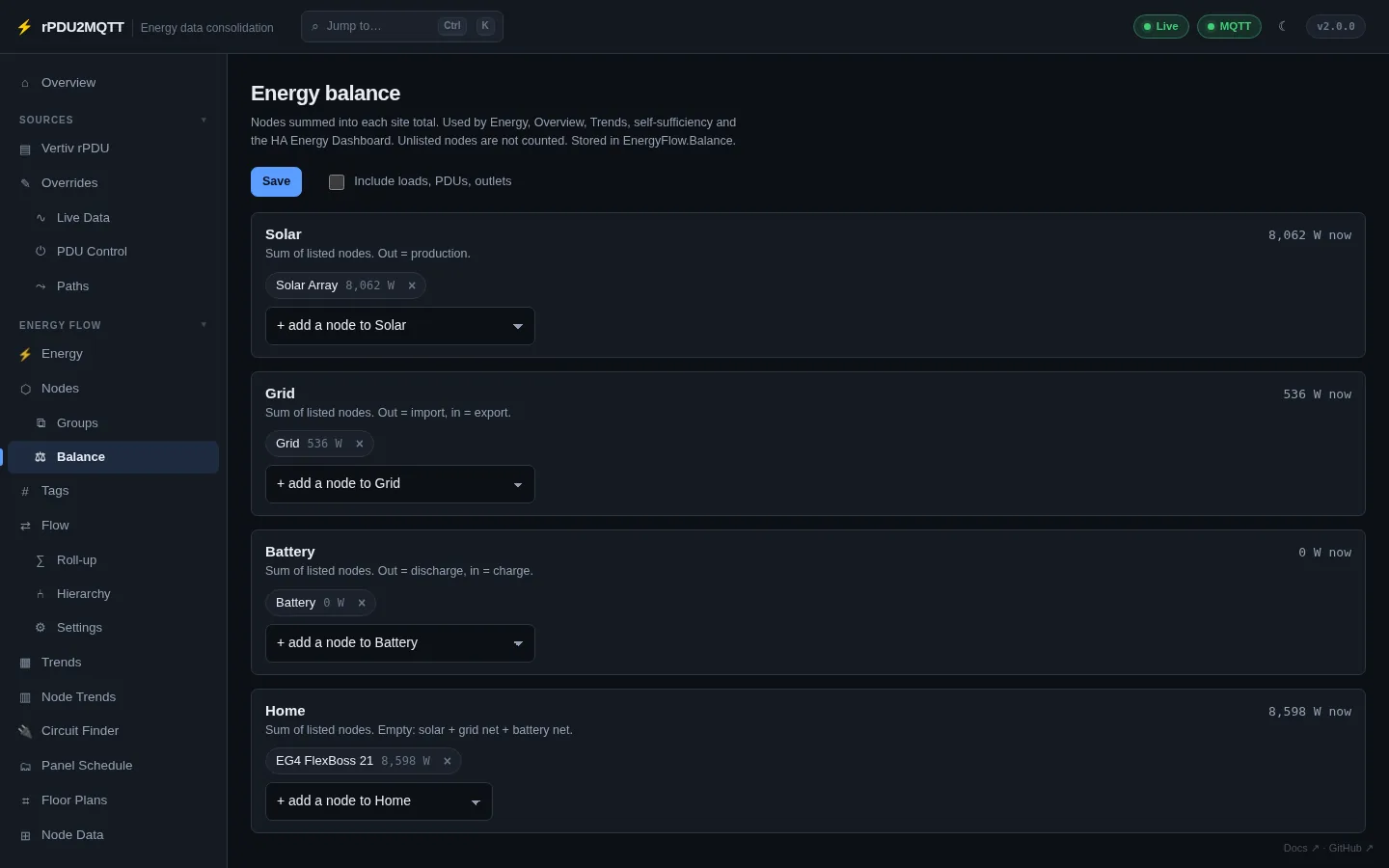

Energy balance page

Total Nodes Direction
Solar PV totals, not the strings under them out = production
Grid Grid meters out = import, in = export
Battery Battery banks out = discharge, in = charge
Home Inverter load output or whole-house meter Empty = solar + grid net + battery net
  • Counts toward on a node edits the same lists. A node counts toward one total.
  • With every list empty, totals follow each node's Kind.
EnergyFlow:
  Balance:
    Solar: [solar]
    Grid: [grid]
    Battery: [battery]
    Home: [inverter]

How a node gets its value

In order:

  1. A live source bound to the node, or its fixed Value.
  2. The sum of the nodes it feeds.
  3. Inferred: the one unmeasured path into a node with measured demand. Labelled inferred. Off with Infer from a single supply path on Flow settings.

Otherwise the node shows no data, publishes nothing, and the API returns null. Several unmeasured feeders into one node all show no data. Set one to Mode residual to give it the remainder.

Mode Value
auto Roll-up of what it feeds (default)
static Fixed Value
residual What its target still needs after measured feeders
untracked Measured parent minus its measured children
none Never inferred

A live source always wins over the mode.
