History

Past readings for the Flow, Energy, Trends, Node Trends and Node Data pages.

Turn on with History.Enabled: true in the config file.

GUI

System › History. Test history backend checks the selected provider.

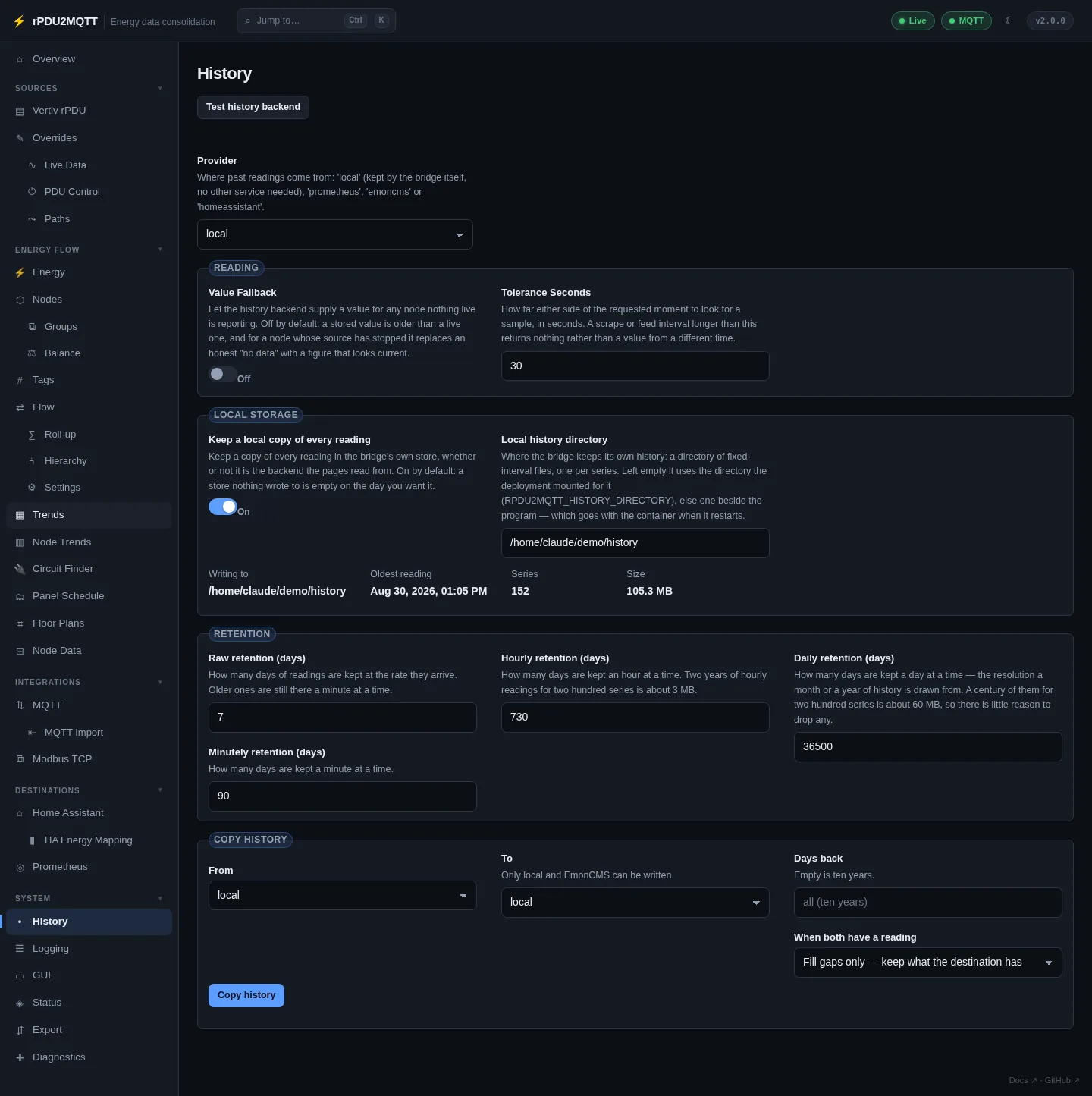

History settings page

Reading

Field	Setting	Default	Notes
Provider	`History.Provider`	`local`	`local`, `prometheus`, `emoncms`, `homeassistant`
Value Fallback	`History.ValueFallback`	off	Use the latest stored value for a node with no live reading
Tolerance Seconds	`History.ToleranceSeconds`	`30`	Search window either side of the requested time. Range 1–600
Prometheus URL	`History.PrometheusUrl`		Prometheus server that scrapes the bridge, e.g. `http://prometheus:9090`. Provider `prometheus`

Provider emoncms uses the EmonCMS URL and key. Provider homeassistant uses the Home Assistant URL and token.

Local storage

Field	Setting	Default
Keep a local copy of every reading	`History.LocalEnabled`	on
Local history directory	`History.LocalPath`	empty

LocalEnabled records whatever the provider is.
Empty LocalPath uses RPDU2MQTT_HISTORY_DIRECTORY, else a directory beside the program.
The page shows the directory in use, the oldest reading, the series count and the size.
Put the directory on a persistent volume. The Helm chart does this by default (history.persistence.enabled, mounted at /data/history).

Retention

Field	Setting	Default	Range
Raw retention (days)	`History.LocalRawKeepDays`	`7`	1–3650
Minutely retention (days)	`History.LocalMinuteKeepDays`	`90`	1–3650
Hourly retention (days)	`History.LocalHourKeepDays`	`730`	1–36500
Daily retention (days)	`History.LocalDayKeepDays`	`36500`	1–36500

Minute, hour and day tiers store the last reading in each bucket.

About 1 GB a year for 200 series at a 10 second interval, with the defaults.

Copy history

Copies every node's history from one backend to another, in the background.

Field	Values
From	`local`, `emoncms`, `prometheus`, `homeassistant`
To	`local`, `emoncms`
Days back	Empty = ten years
When both have a reading	Fill gaps only (default), or replace (`local` only)

EmonCMS is written only into feeds that already exist.
Only the leader writes to local.
API: POST /api/history/copy?from=emoncms&to=local&days=45&conflicts=keep; GET for progress.

Stored metrics

Power, apparent power, energy, daily energy, current, voltage, frequency, power factor, state of charge, other percentages, temperature, battery charge and grid export, for every node that reports them.

YAML

History:
  Enabled: true
  Provider: local
  LocalEnabled: true
  LocalPath: ''
  LocalRawKeepDays: 7
  LocalMinuteKeepDays: 90
  LocalHourKeepDays: 730
  LocalDayKeepDays: 36500
  ToleranceSeconds: 30

All settings: History settings reference.
